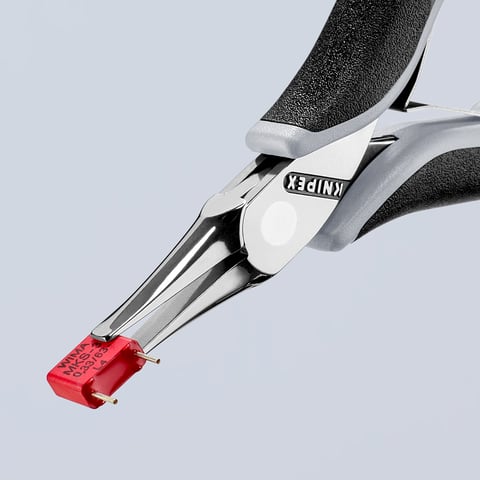

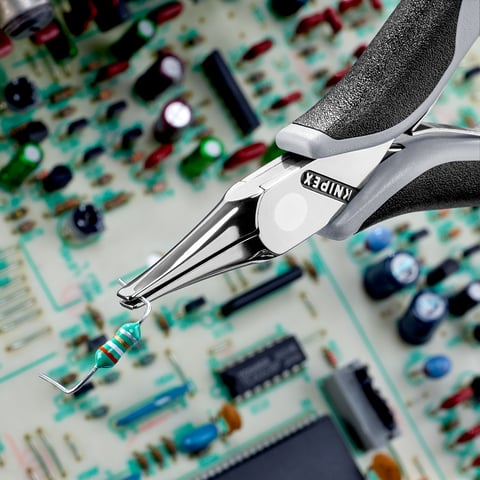

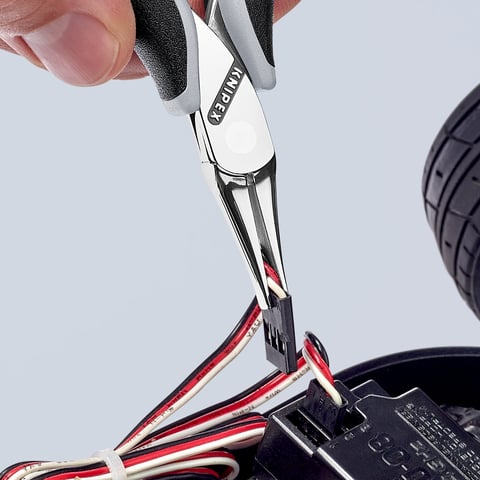

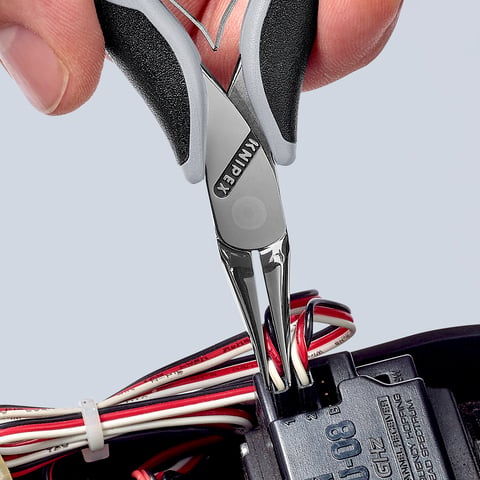

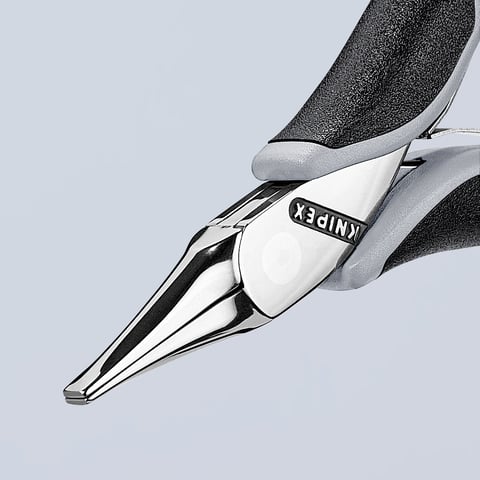

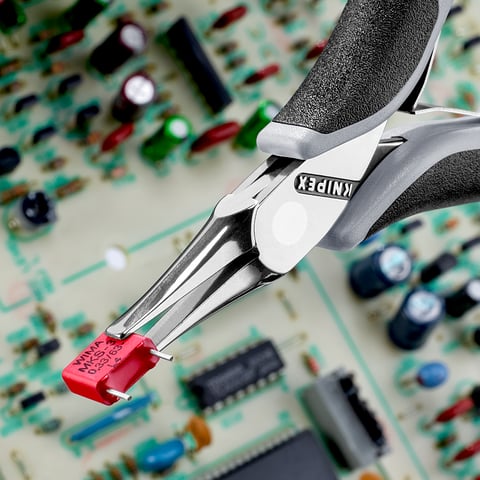

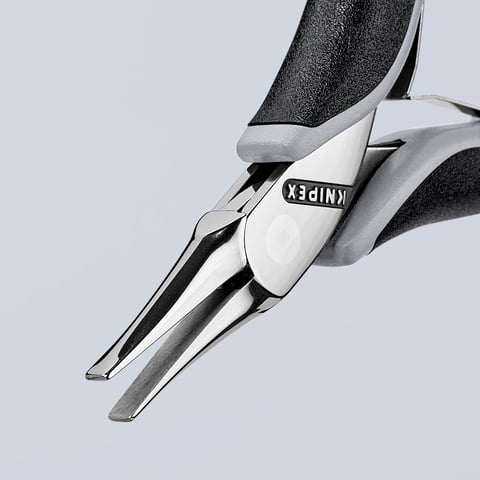

35 12 115 ESDElectronics Pliers ESDWith box joint
35 12 115 ESD
Electronics Pliers ESD
With box joint
- Robust, load-optimized construction with through-pinned and backlash-free precision joint
- Head carefully rounded: no sharp edges that could damage the material
- Electrically discharging handles - dissipative
- High, slim sleeves for fine and comfortable gripping between thumb and index finger
- Uniform bending behavior for a more direct sense of work
- Smoothly ground gripping surfaces for damage-free gripping
- Low-friction double spring for gentle and even opening
- The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
- Flat, wide jaws, smoothly ground gripping surfaces
Technical attributes
Article No.
35 12 115 ESD
EAN
4003773024835
Head
mirror polished
Handles
with multi-component grips
Weight
70 g
Dimensions
115 x 51 x 17 mm
Standard
DIN ISO 9655 DIN EN 61 340-5
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Jaw length (B)
22.5 mm
Jaw thickness (joint) (D)
6.5 mm
Tips width (E)
2.0 mm
Tips thickness (F)
4.0 mm
Head width (A)
11.0 mm
ESD
yes
