77 32 115Electronics Diagonal CutterWith box joint
77 32 115

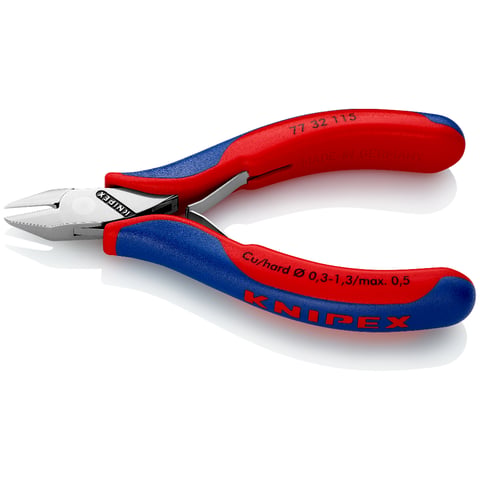

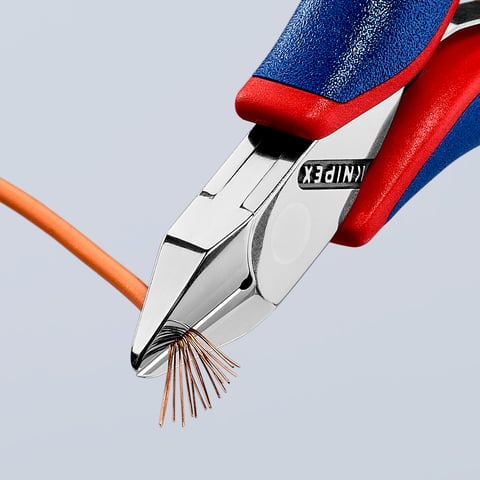

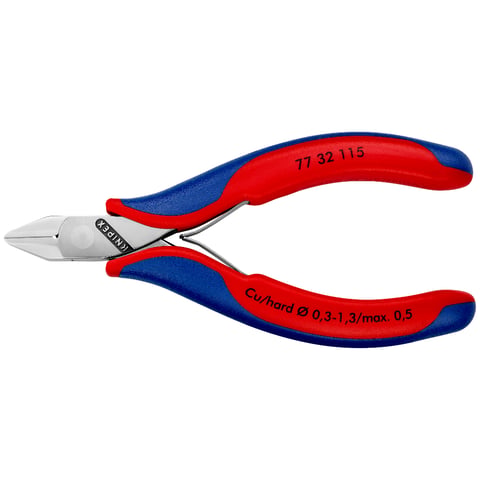

Electronics Diagonal Cutter
With box joint
- Durable, load-optimised design with backlash-free box joint
- High, slim sleeves for fine and comfortable gripping between thumb and index finger
- Less physical effort due to very high transmission ratio
- Load-optimised for a more direct feel when working
- Low-friction double spring for gentle and even opening
- The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
- Cutters additionally laser hardened, cutter hardness at least 62 HRC

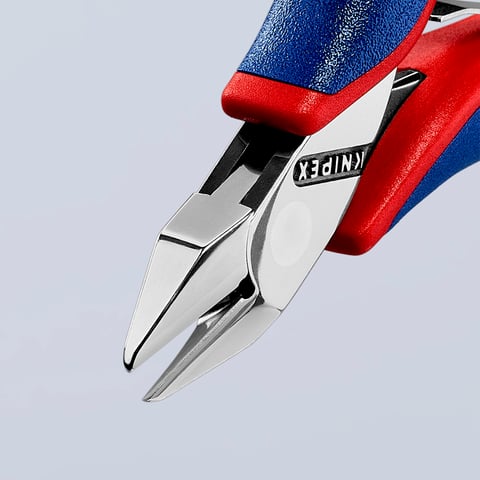

- Pointed head, with small bevel
Technical attributes
Article No.
77 32 115
EAN
4003773044307
Head
mirror polished
Handles
with multi-component grips
Weight
65 g
Dimensions
115 x 66 x 17 mm
Standard
DIN ISO 9654
REACH compliant
does not contain SVHC
RoHS compliant
not applicable
Cutting capacities medium hard wire (diameter)
Ø 1.0 mm
Schneidwerte harter Draht (Durchmesser)
Ø 0.5 mm
Jaw length (B)
14 mm
Jaw thickness (joint) (D)
7.5 mm
Head width (A)
11 mm
Brief overview
Compact diagonal cutters for fine cutting, e.g. electronics/precision mechan.
Wire cutting values: soft Ø0.3–1.3 mm, medium-hard Ø1.0 mm, hard Ø0.5 mm
Box joint
Mirror polish plus fine oil film protect against rust
Forged, multistage oil-hardened with special quality tool steel
Cutting edges also induction-hardened, hardness approx. 60 HRC
Handles, multi-component grips
Length 115mm; Net weight 80 g
